WGWK 1080P 90FPS Global Shotter USB Camera High Frame AR0234 Industrial Metal Box Manual Zoom Lens Without Blur Mini Webcam













Note: Supports replacement of filters of other specifications. Available models include Narrowband 650nm/740nm/780nm/808nm/850nm/905nm/940nm/980nm, 700nm long wave pass, Infrared 650nm/850nm/940nm

If you need it, please contact customer service in time!

1080P 90FPS Global Shutter Aptina AR0234 Sensor Overview

1. Sensor Specifications: The Aptina AR0234 is a 1080P global shutter sensor (1/2.6”) designed for high-quality imaging.

2. Shutter Type: Featuring a global shutter, this camera excels at capturing high-speed moving subjects with crisp, sharp images. It effectively eliminates rolling artifacts, providing a more accurate and complete picture compared to rolling shutter cameras.

3. High Frame Rate: The camera supports high frame rates, delivering MJPEG video at 90fps in resolutions

4. Plug & Play: This camera is UVC-compliant, allowing for easy connectivity. Simply plug it into a PC, laptop, Android device, or Raspberry Pi via USB—no additional drivers required.

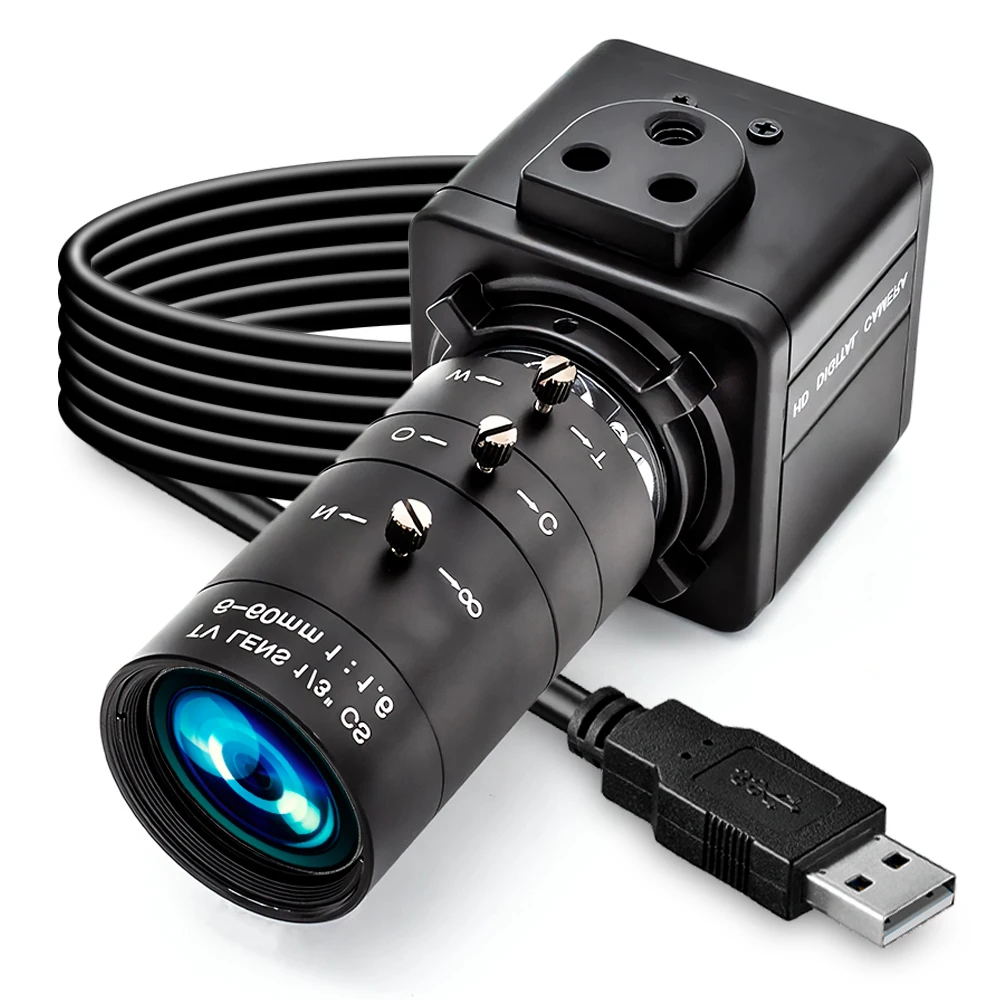

5. Lens Options: An optional manual zoom lens is available for enhanced versatility.

Global Shutter vs. Rolling Shutter:

Global Shutter Cameras: Perfect for capturing high-speed motion with clarity, these cameras prevent issues like partial exposure, skew, and wobble, which are common with rolling shutter cameras. They are particularly effective for short exposure times (e.g., <500µs).

Rolling Shutter Cameras: Better suited for longer exposure times (e.g., >500µs), making them more suitable for different imaging scenarios.



Applications: The combination of high image quality, elevated frame rates, and good sensitivity makes global shutter cameras ideal for various applications, including:

• High-speed sports photography
• Industrial inspection
• Video applications
• Industrial automation
• Robotics
• Scientific imaging
• Augmented and virtual reality
• Gesture and eye tracking
• Depth and motion detection

Model	WGWK-USB-1080P@90FPS
Sensor	Aptina AR0234 (1/2.6”) Global Shutter
Max Resolution	1920 (H) *1200 (V)
Sensor Size	1/2.6 inch (4:3)
PixelSize	3.0μm
Compression Format	MJPEG/YUV2 (YUYV)
Resolution& Framerate	1920×1200 @90fps MJPEG	1920×1080 @ 90fps MJPEG
	1600×1200 @90fps MJPEG	1280×960 @ 90fps MJPEG
	1280×720 @90fpsMJPEG	1024×768 @ 90fps MJPEG
	960×720 @ 90fps MJPEG	800×600@ 90fps MJPEG
	640×480 @ 90fps MJPEG	320×240 @ 90fps MJPEG
Surface Mount Technology	SMT
Focus	Fixed
Central Definition	600LW/PH (Center)
S/N Ratio	37dB
DynamicRange	70dB
Sensitivity	1.4V/lux-sec@550nm
MiniIllumination	0.3lux
Shutter	Global Shutter

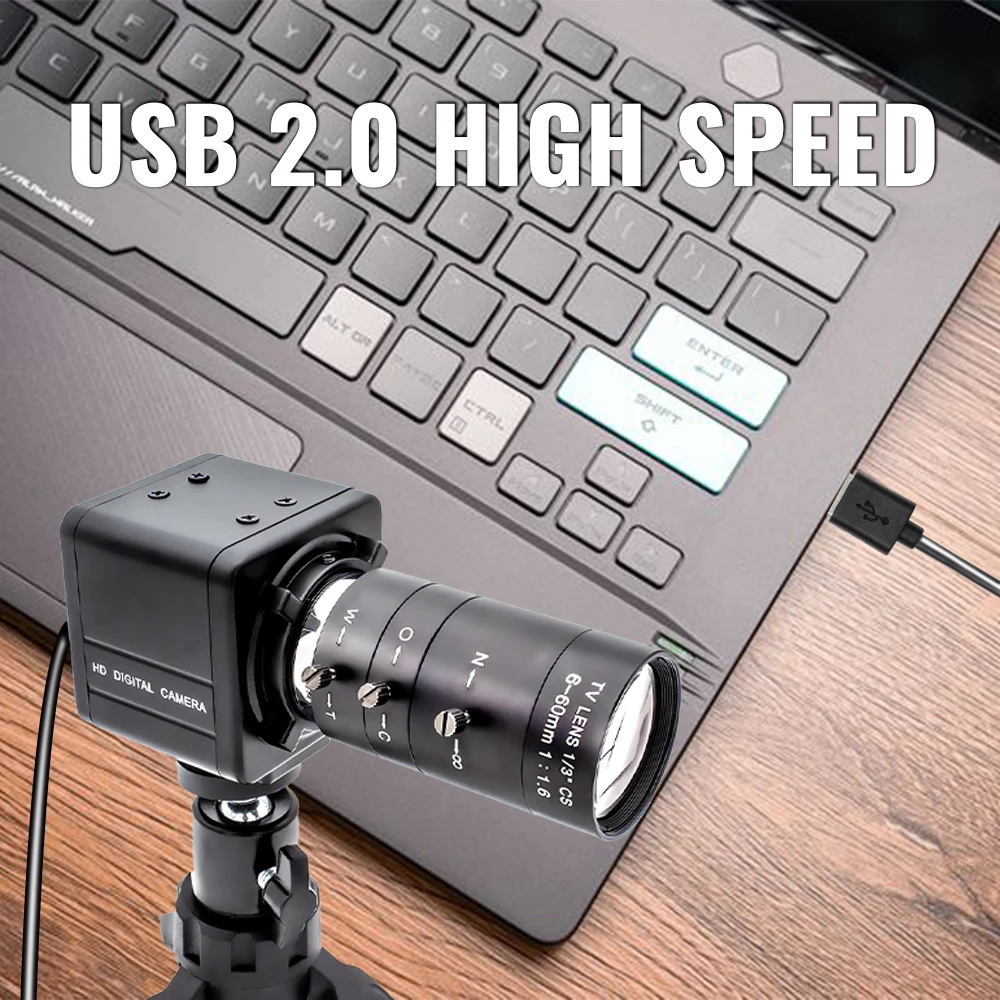

Interface	USB2.0 High Speed
AEC	Support
AWB	Support
AGC	Support
AdjustableParameters	Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,
	White balance, Backlight Compensation, Exposure
Lens Parameters	with 5-50mm Varifocal lens
LED board power connector	Support 2P-2.0mm socket
Power Supply	USBBUSPOWER4P-2.0mm socket
Operating Voltage	DC5V
WorkingCurrent	160mA- 190mA
Dimension	38mm x 38mm
Storage Temperature	-20°Cto80°C
Working Temperature	0°C to 60°C
OperatingSystemRequest	WinXP/Vista/Win7/Win8/Win9/Win10/Win11 etc.
	Linux withUVC(abovelinux-2.6.26)
	MAC-OS X 10.4.8 orlater
	Android4.0 or above with UVC

2.8-12mm:3.6-10mm:5-50mm:6-60mm:5-100mm:

Step 1: Install Computer USB Camera Software – amcap

Contact customer service to obtain the software installation package.

Step 2: Connect the computer using a USB cable.

Step 3: Adjust the focal length to achieve a clear image.About us:
